MPA1 Range
The MPA1 range provides quick and simple operation, with each model available as a Solo or Mix variant.
ST 2110, 3G/HD/SD-SDI, Dante, MADI, AES and Analogue audio interfaces are all catered for by the MPA1 Range of audio monitoring products. Whilst MPA1-SOLO products provide the simplest of audio monitoring solutions, MPA1 MIX products allow users to define their own monitor mix by allowing multiple audio sources to be mixed together.
Spotlight: Meet the award-winning MPA1-MIX-NET-V-R
Features
- Ease of Use – Offering both simple and intuitive control, the MPA1 range has been designed to enable the smoothest of workflows for operators and engineers working under high pressure such as with live production.
- Compact and Lightweight – All MPA1 monitors share the same 1RU form factor at only 100mm deep, with a built in power supply and are ideally suited for where space and weight is a premium, such as OB trucks, flyaways, SNG and ENG trucks.
- Web GUI - All MPA1 range monitors can be configured, controlled and monitored via a web interface. Facility wide management of all the MPA1 is now possible from a single desktop PC or via the SNMP protocol.
- All MPA1 products benefit from TSL’s significant history and experience in developing professional audio monitoring products for use in the most demanding of broadcast environments.

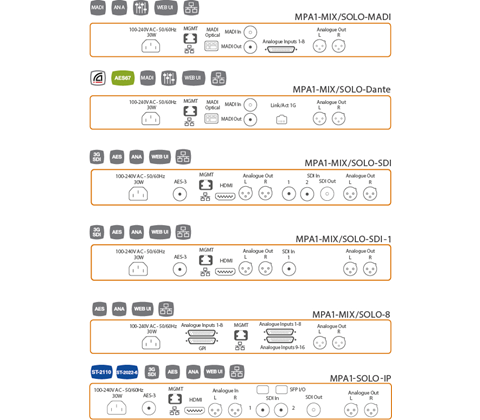

MPA1 Range at a glance
MPA1-MIX-NET-V-1
- Simple 1RU AoIP audio monitor. Front panel display with 16 level meters, custom source names, adjustable gain control. 1x AoIP input port via 1Gbit ethernet, 1x MADI SFP input (SFP is optional) 2x balanced analogue inputs. 1x balanced stereo output, 1 front panel headphone output. Internal loudspeakers, internal PSU, web interface and SNMP control.
MPA1-SOLO-IP
- Simple 1RU SDI and IP audio monitor: Front panel display including 16 Level Meters, custom Source Names, Audio Phase and Video confidence display. 2 x ST-2110 and ST-2022-6 10GbE IP interfaces via SFP modules, 2 x 3G/HD/SD SDI Inputs, 1 x AES3id input and 2 x Balanced Analogue inputs. 1 x Balanced Stereo Output, 1 x Re-clocked 3G/HD/SD SDI Output and HDMI Output. Internal Loudspeakers and Front Panel Headphone Output, Internal PSU, Web-interface and SNMP Control.
MPA1-MIX-NET-V-R
- The powerful and intuitive MPA1-MIX-NET provides ‘at a glance’ multi-channel audio monitoring and mixing for ST 2110 AoIP networks, with ST 2022-7 and NMOS IS-04/05 support. With 8 dedicated rotary controls, users can quickly create their preferred monitoring mix available from internal speakers, headphone jack, and line outputs. From the total of 128 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled.
MPA1-SOLO-SDI-1
- Simple 1RU SDI audio monitor: Front panel display including 16 Level Meters, Source Names, Audio Phase and Video confidence display. 1 x 3G/HD/SD SDI Input + 1 x AES3id input and 2 x Balanced Analogue inputs. 1 x Balanced Stereo Output, HDMI Output + 1 Front Panel Headphone Output, Internal Loudspeakers, Internal PSU, Web-interface and SNMP Control.
MPA1-MIX-MADI-V-1
- Simple 1RU MADI audio mixing monitor, optimised for use in production environments: Front panel display including 16 Level Meters with adjustable gain via numbered front panel encoders with custom Source Names. Featuring 16 audio mixes accessible using scroll to select function. 1 x MADI input and 1 x MADI loop-through output via SFP. Includes SFP with twin HD BNC connectors and 2 x HD BNC to BNC adapter cables. 4 x Stereo Analogue inputs, 1 x Balanced Stereo Output, Internal Loudspeakers and Front Panel Headphone Output, Internal PSU, Web-interface and SNMP Control.
MPA1-MIX-DANTE-V-1
- Simple 1RU Dante/AES67 and MADI audio mixing monitor, optimised for use in production environments: Front panel display including 16 Level Meters with adjustable gain via numbered front panel encoders with custom Source Names. Featuring 16 audio mixes accessible using scroll to select function. 1 x DANTE Input, 1 x MADI Optical input (option), 1 x Balanced Stereo Output, Internal Loudspeakers and Front Panel Headphone Output, Internal PSU, Web-interface and SNMP Control. Dante Domain Manager Compliant.
MPA1-MIX-8-V
- Simple 1RU audio mixing monitor, optimised for use in production environments: Front panel display with 16 Level Meters and Source Names. 8 x AES Inputs + 8 x Balanced Analogue inputs. 1 x Balanced Stereo Output, 1 x Front Panel Headphone Output, 8 x GPIO, Internal Loudspeakers, Internal PSU, Web-interface and SNMP Control. (Numbered front panel encoders).
MPA1-SOLO-8
- Simple 1RU audio monitor: Front panel display with 16 Level Meters, Source Names and Audio Phase display. 8 x AES Inputs + 8 x Balanced Analogue inputs. 1 x Balanced Stereo Output, 1 x Front Panel Headphone Output, 8 x GPIO, Internal Loudspeakers, Internal PSU, Web-interface and SNMP Control.
MPA1-MIX-SDI-V-1
- Simple 1RU SDI audio mixing monitor, optimised for use in production environments: Front panel display including 16 Level Meters with adjustable gain via numbered front panel encoders, Source Names and Video confidence display. Featuring 16 audio mixes accessible using scroll to select function. 1 x 3G/HD/SD SDI Input + 1 x AES3id input and 2 x Balanced Analogue inputs. 1 x Balanced Stereo Output, HDMI Output, Internal Loudspeakers and Front Panel Headphone Output, Internal PSU, Web-interface and SNMP Control.
