PAM-NET

PAM IP Range

PAM-NET

TSL’s trusted PAM platform now supports ST 2022-7 redundancy, delivering reliable IP audio monitoring for ST 2110-30, AES67 and Ravenna streams. It is designed for live production, playout, transmission, and QC applications. Available in 1RU or 2RU.

Building on the success of the PAM range, PAM-NET introduces ST 2022-7 resilience while retaining the familiar interface and trusted QC features engineers already rely on. PAM-NET combines proven QC features—loudness (CALM) monitoring and optional Dolby decoding—with SMPTE-aligned resilience, ensuring high-quality, future-ready operation. With dual 1GbE RJ45 connections, PAM-NET adds support for 64 channels of AoIP monitoring in redundant network topologies, with support for NMOS IS-04 and IS-05. This ensures smooth integration into IP-based operations while maintaining legacy I/O for hybrid environments.

Features

  • 64 channels of AoIP connectivity via dual 1GbE RJ45 ports providing ST 2022-7, ST 2110-30, AES67 and Ravenna

  • ITU BS1770/71 and EBU R128 loudness measurement and histogram

  • Web interface and REST API for efficient control and configuration of key AoIP parameters from any remote location

  • High-quality internal full-range loudspeaker system
  • User-programmable presets for fast front panel selection of inputs and monitoring configurations

  • AV offset feature to monitor in sync with an external video display, compensating for inherent delay

  • Multichannel audio outputs for external stereo or 5.1 loudspeaker integration

  • Optional Dolby E, D, and D+ decoding with metadata display

  • Dual high-resolution screens for 16 bargraphs, setup, and metadata display

  • Wide input support, including SDI with 16-channel audio de-embedding, AES and analogue audio

Specifications

Functions and connections include:

  • 4 x SDI Inputs

  • 4 x AES Inputs

  • 2 x Stereo Analogue Inputs

  • 2 x External SDI Monitoring Outputs

  • EBU-R128 Loudness Monitoring with Histogram Display

  • Audio and Video Metadata Monitoring

  • 5.1 Monitoring Output

  • Remote Control and Configuration via Web Browser

  • Support for PAM and 3rd Party Control Protocols

  • 1 x External P.S.U. (optional redundant PSU)

Options include:

  • DOLBY E/D/DD+ monitoring
  • ST 2022-6 and ST 2110 on 10GbE IP links
  • Optional support for NMOS IS-04 and IS-05 (in-band) control for device discovery and management
  • Options include 12G SDI



Ordering Code Description
PAM1

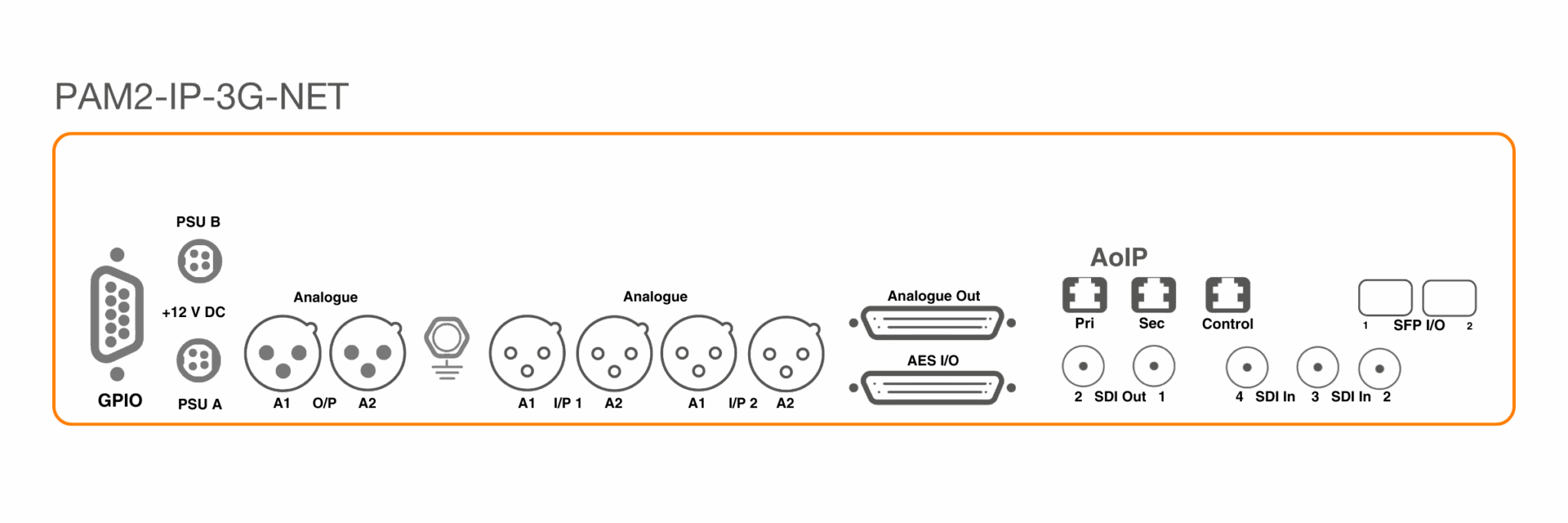

PAM1-IP-3G-ND-NET 1RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Non-Dolby
PAM1-IP-3G-NET 1RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Includes DOLBY E, DOLBY D and DOLBY DD+ Monitoring
PAM2
PAM2-IP-3G-ND-NET 2RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Non-Dolby
PAM2-IP-3G-NET 2RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Includes DOLBY E, DOLBY D and DOLBY DD+ Monitoring

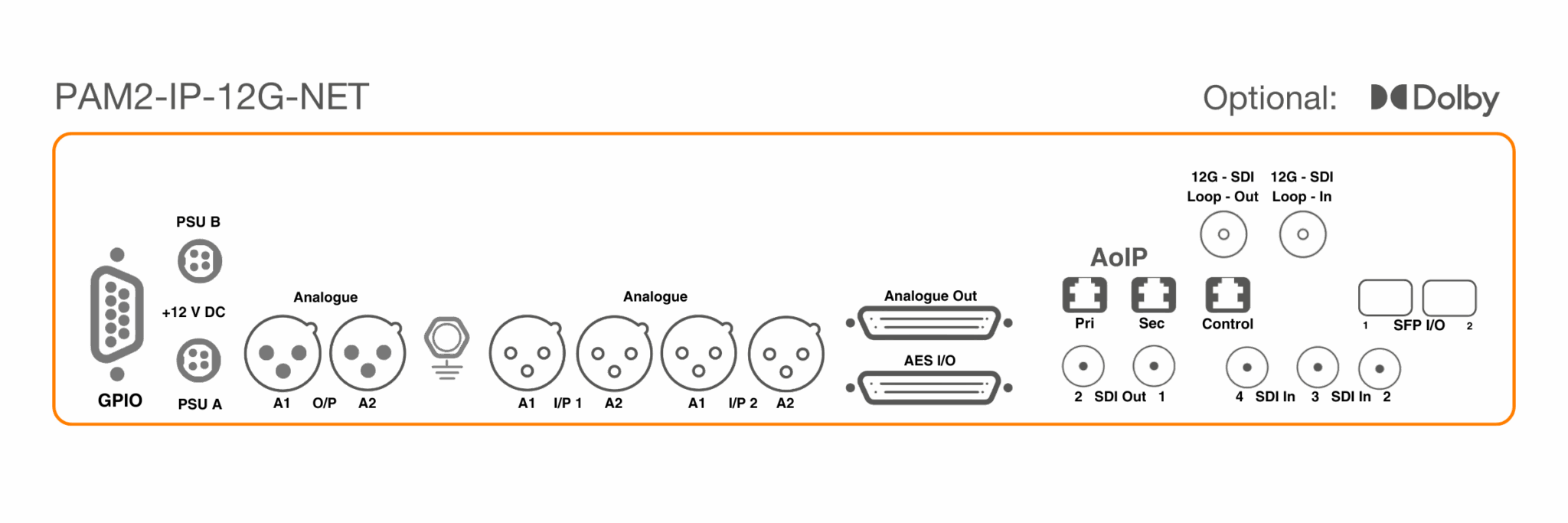

PAM2-IP-12G-ND-NET 2RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Non-Dolby
PAM2-IP-12G-NET 2RU Precision Audio Monitor with 64 channel AoIP on dual 1GbE ports. Includes DOLBY E, DOLBY D and DOLBY DD+ Monitoring
