MPA1-MIX-DANTE - COMPACT AND COST-EFFECTIVE

MPA1-MIX-DANTE - COMPACT AND COST-EFFECTIVE

Specifically designed for use where operators need to create a custom mix from a DANTE stream. With powerful user features accessible via the web UI, the MPA1-MIX-DANTE is simple to use and flexible enough to meet specific and demanding workflow requirements.

  • High quality audio monitoring of 64 DANTE and 64 MADI audio channels
  • Audio level meter display of up to 16 DANTE or MADI audio channels per mix bank
  • Quick store and recall of up to 16 monitor mixes
  • High-quality internal loudspeaker system
  • Built-in web server allows remote configuration, control and monitoring over an Ethernet network.
  • Free software updates


Technical Specs
  • 1 x RJ45 Dante Audio Port
  • 1 x Coaxial MADI Input (with loop through connection)
  • 1 x Optical MADI Input
  • 1 x Balanced Analogue Output Pair
  • 1 x RJ45 Ethernet control and monitoring port

MPA1-MIX-DANTE
  • Fast and intuitive stereo monitor mixing of up to 16 DANTE or MADI audio channels per mix bank
  • Quick store and recall of up to 16 monitor mixes
  • Source Label and Monitor Mix Label display

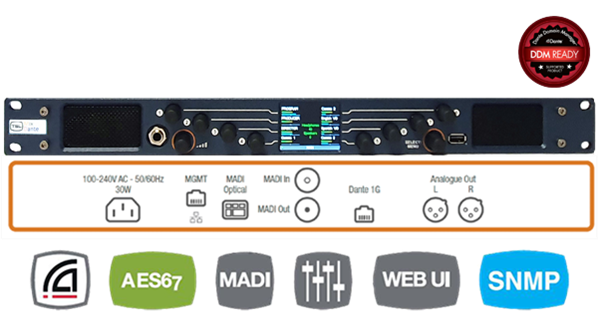

View the MPA1-MIX-DANTE-V

We now support Audinate’s Dante Domain Manager, across our entire range of Dante audio monitos, including its PAM1-IP, PAM2-IP and MPA1-MIX-DANTE-V. Dante Domain Manager is network management software that enables user authentication, role-based security and audit capabilities for Dante networks while allowing seamless expansion of Dante systems over any network infrastructure.

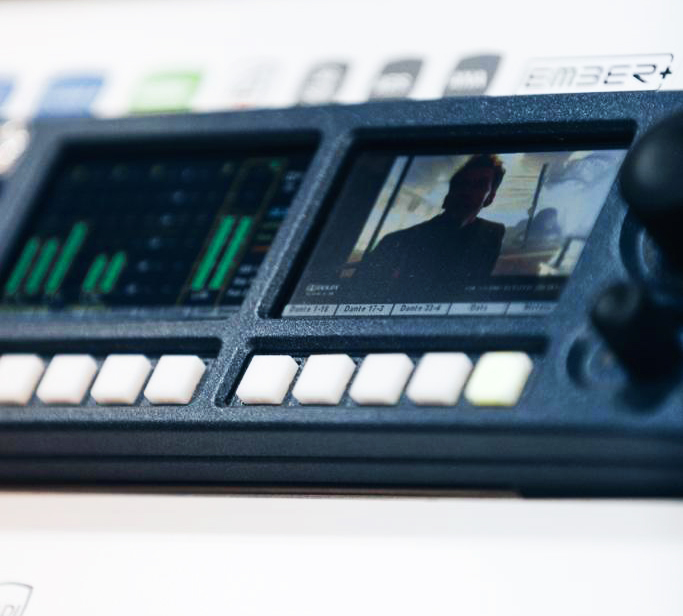

PAM-IP - Supporting the IP Transition

PAM-IP - Supporting the IP Transition

The PAM-IP features Primary and Secondary Dante ports, as well as support for ST-2110 and ST-2022-6 and SDI, AES and Analogue, allowing you to transition to IP at a pace that suits you.

  • Support IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analogue Audio connections
  • Supports Dante Audio over IP (Optional extra)
  • Monitoring and decoding of Dolby E®, Dolby Digital® and Dolby Digital Plus® (including Metadata)
  • Loudness Monitoring – EBU (R128) and ATSC (A85)
  • Remote Control (API and GPI)
  • Web-GUI
View the PAM-IP >
